BRAND : NSD

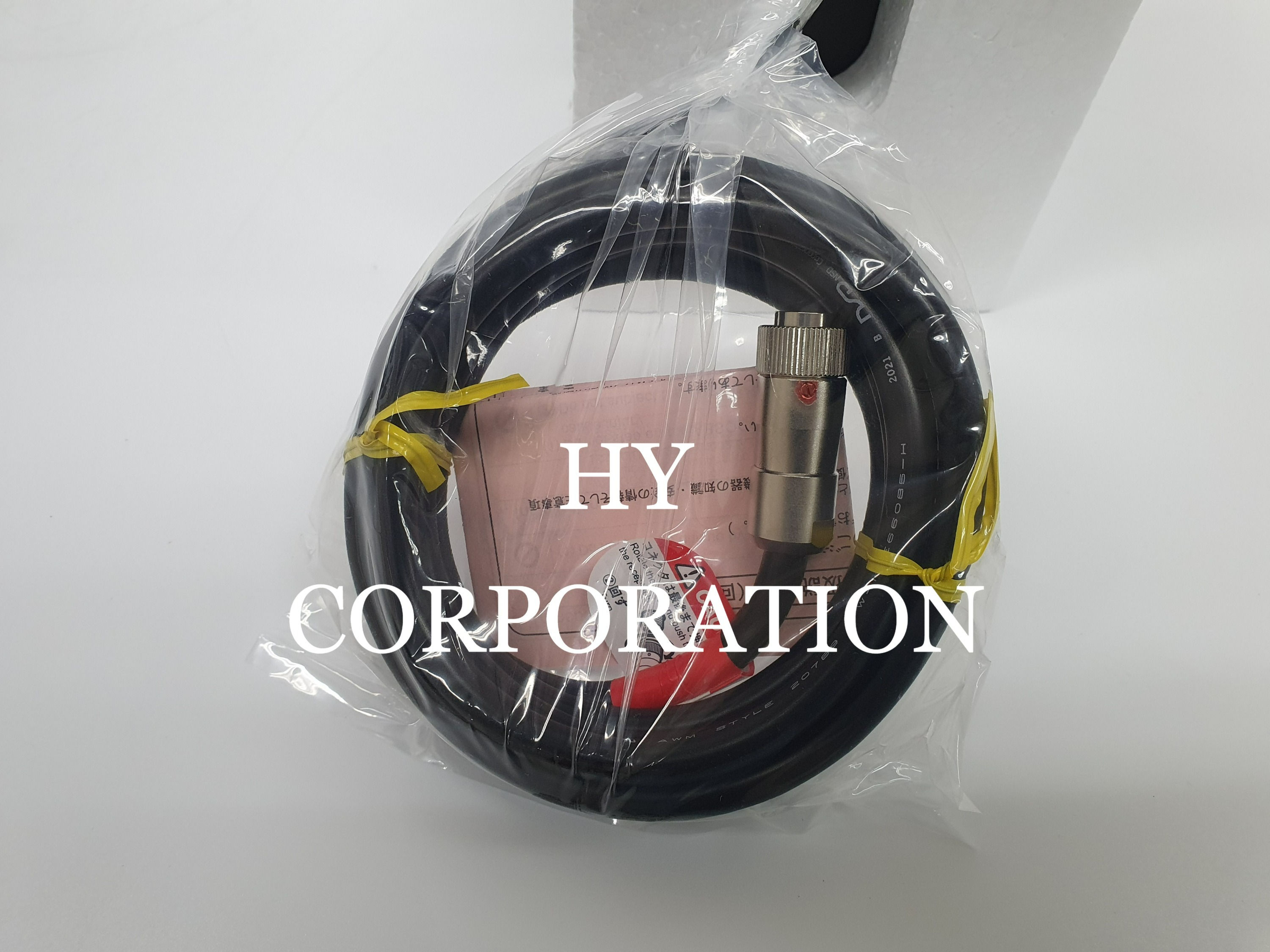

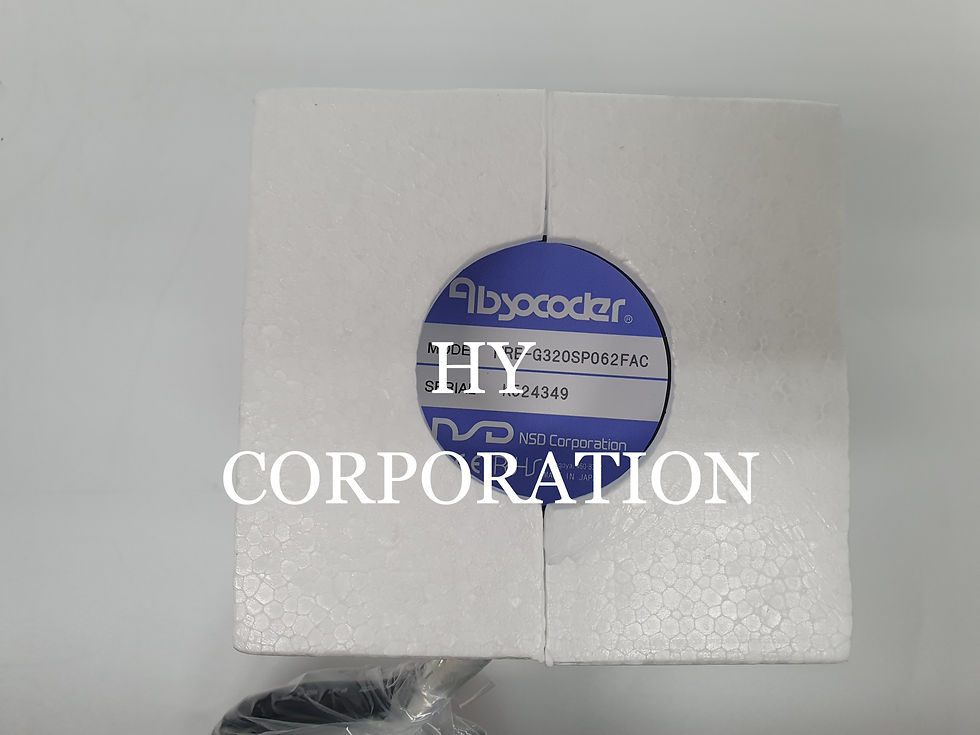

MRE-G320SP062FAC
NSD multi turn absolute position sensor named MRE ABSOCODER is an electro-mechanical sensor that measures the angular position under magnetic reluctance change.
| Item | Specification | |||||
|---|---|---|---|---|---|---|
| Sensor model | MRE-32SP062 | MRE-G□SP062 | ||||
| Total number of turns | 32 | 64 | 128 | 160 | 256 | 320 |
| Divisions/Turn | 4096 | 2048 | 1024 | 819.2 | 512 | 409.6 |
| Total number of divisions | 131072(217) | |||||
| Mass(kg) | 1.5 | 1.0 | ||||
| Linearity error(°degree) | 1 Max. | 2 Max. | 4 Max. | 5 Max. | 8 Max. | 10 Max. |
| Moment of inertia | kg･m2 {kgf･cm･s2} | 6.7×10-6{6.8×10-5} | 3.9×10-6{4.0×10-5} | |||
| Starting torque | N･m{kgf･cm} | 4.9×10-2 {0.5} or less | ||||
| Permissible shaft load | Radial(N {kgf}) | 98{10} | ||||
| Thrust(N {kgf}) | 49{5} | |||||
| Permissible mechanical speed | 3600 | |||||
| Bearing life(h) | 3.0×104(at 3600 r/min) | 1.5×104(at 3600 r/min) | ||||
| Ambient temperature | Operating(℃) | -20 ～ +60 | ||||
| Storage(℃) | -30 ～ +90 | |||||
| Vibration resistance | 2.0×102m/s2 {20G} 200Hz up /down 4h, forward/back 2h, conforms to JIS D1601 standard | |||||
| Shock resistance | 4.9×103m/s2 {500G} 0.5ms up/down/forward/back 3 times each, conforms to JIS C5026 standard | |||||
| Protection rating | IP52f(JEM1030) | |||||
| Max. sensor cable length | Standard cable (m) | 100(4P-S) | ||||
| Robotic cable (m) | 40(4P-RBT) | 70(4P-RBT) | ||||
| Interconnecting sensor cable (m) | 2 |
NSD MRE-G320SP062FAC
$0.00Price
Please contact us for a quote by email.
